Modular Ice Machine with a vertically mounted evaporator are entirely made of stainless steel. They are characterized by their innovative, linear design and high reliability.
Modular Ice Machine is produced using a continous stream of water which flows downwards and is unifomly distributed accross a highly efficient vertical evaporator.
With their superior cooling performance and low production costs, solid square cubes offer the best solution for all situations where high ice consumption is needed.
6gr or 10gr or 17gr SQUARED ICE CUBE
Check out Online Ice Machines other popular products
10gm crystal clear hard ice cube
Manufactured in Italy
Stainless steel body
|EQ 150||EQ 250||EQ 400|
|Cooling System||A / W||A / W||A / W|
|Production in 24h (6gr or 10gr or 17gr cubes)||150 kg||250 kg||400 kg|
|Production Per Cycle||275/168/110 ice cubes||370/234/140 ice cubes||555/342/210 ice cubes|
|Voltage Standard||220-240 V~ 50 Hz(*)||220-240 V~ 50 Hz(*)||220-240 V~ 50 Hz(*)|
|Power Consumption||850 W||1100 W||2100 W|
|Type of Refrigerant||R 452 A||R 452 A||R 452 A|

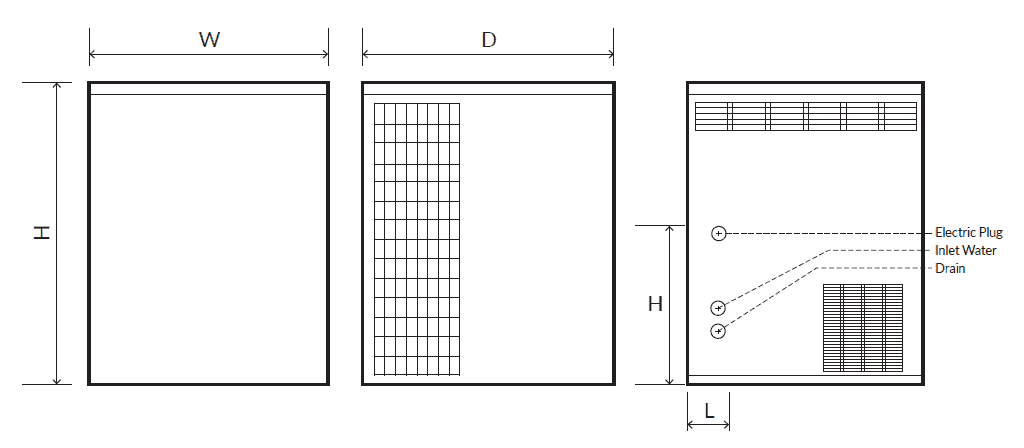

|Dimensions (WxDxH)||560x620x575 mm||760x620x575 mm||760x620x725 mm|
|Net Weight||53 kg||70 kg||88 kg|
|Packing Dimensions (WxDxH)||630x690x720 mm||830x690x720 mm||830x690x870 mm|
|Gross Weight||65 kg||85 kg||106 kg|
